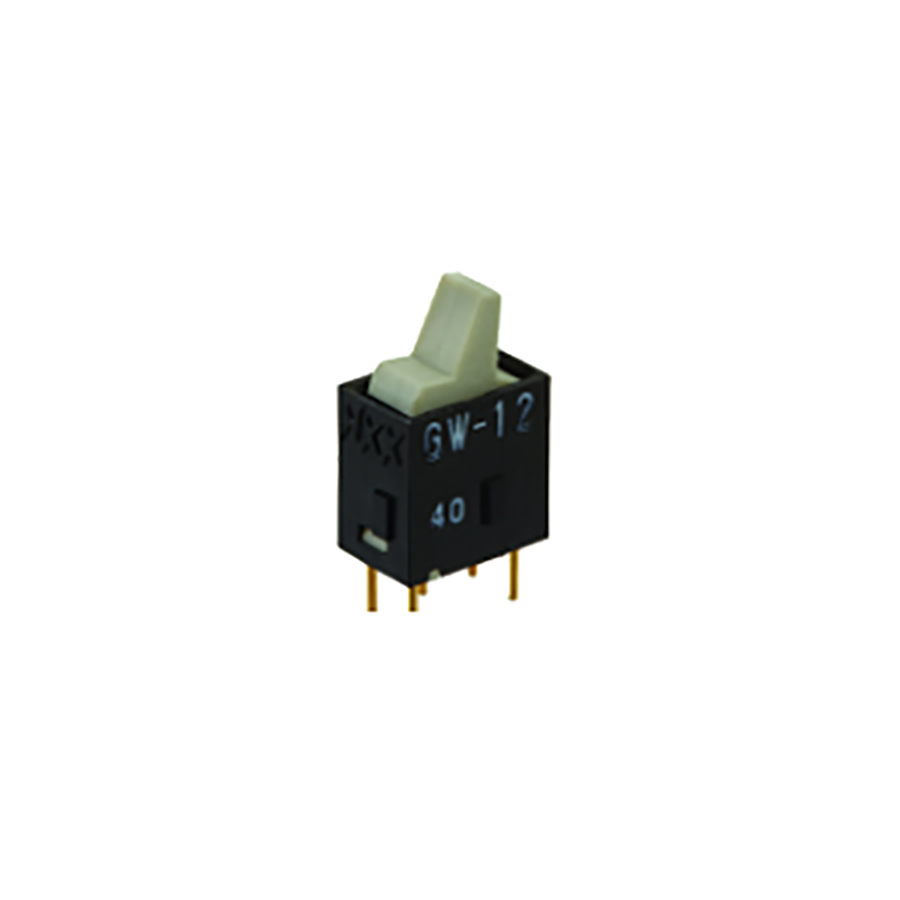

GW12LHP
Manufacturer:
NKK Switches
Mfr.Part #:
GW12LHP
Datasheet:
Description:
Rocker Switches Through Hole SPDT ON - ON Illuminated Paddle Current Rating:400 A
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 28 V |
| Length | 7.5 mm |
| Width | 7 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 28 V |
| Circuit Type | SPDT |
| Packaging | Tray |
| Depth | 5 mm |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Current Rating | 400 A |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 28 V |
| Flammability Rating | UL94V-0 |
| Orientation | Vertical |
| Color | Grey |
| Throw Configuration | SPDT |
| Housing Material | Polyamide |
| Contact Resistance | 80 mΩ |
| Max Voltage Rating (AC) | 28 V |
| Switch Function | ON - ON |
| Illumination Type | Illuminated |
| Electrical Life | 50 kcycles |
| Actuator Material | Glass fibre, Polyamide |
| Mechanical Life | 50 kcycles |
| Contact Current Rating | 100 mA |
| Actuator Type | Paddle |
| Termination Style | PC Pin |
| IP Rating(Ingress Protection) | IP67 |
Stock: 37
Distributors
pcbx
pcbxUnit Price$2.71611
Ext.Price$2.71611
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.71611 | $2.71611 |
| 10 | $2.34678 | $23.46780 |
| 25 | $2.21513 | $55.37825 |
| 50 | $2.12108 | $106.05400 |
| 100 | $2.02790 | $202.79000 |
| 300 | $1.92167 | $576.50100 |
| 500 | $1.82100 | $910.50000 |
| 1000 | $1.73978 | $1739.78000 |
